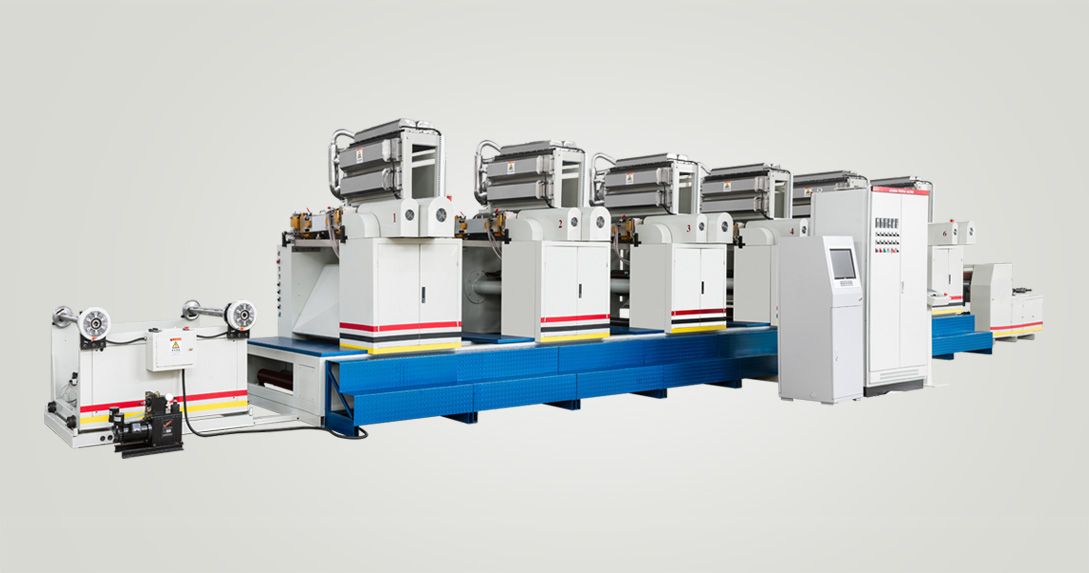

SYJ-800E Roll-R​oll Flexo Printing Machine
SYJ-800E Roll-R​oll Flexo Printing Machine 8/3/2016 8:22:29 PM


Characteristic

Constant tension system,CCD system.
Doctor blade system make good printing effect.
Four colors or six colors combine willfully(0+4,1+3,2+2...).
Color register within 360system.
Printing ink auto cycle.
lnk transfer device specific institutions,to avoid ink splash.
Special fan system and the drying speed is improved obviously.




Main Technical Specifications

Model

SYJ-800E

Diameters of  Roller(mm)

ܦ1500

Max feeding width(mm)

800

Max printing width(mm)

650

Machinery production capacity(m/min)

150

Normal printing speed(m/min)

80-120

Gas consumption(m3/min)

1

Fan power(Kw)

10

Total power(Kw)

18

Dimensions(mm)

1600030002500
